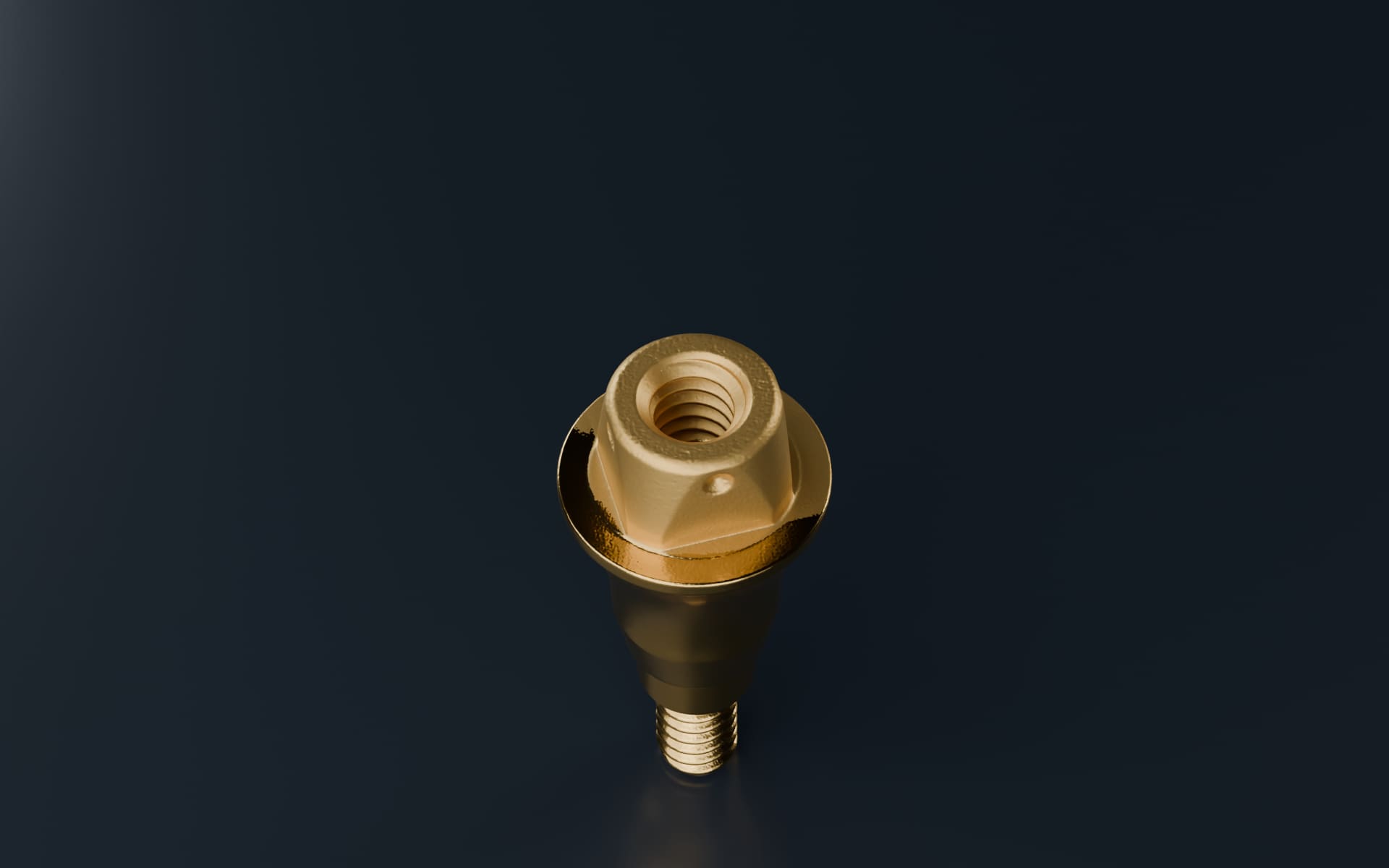

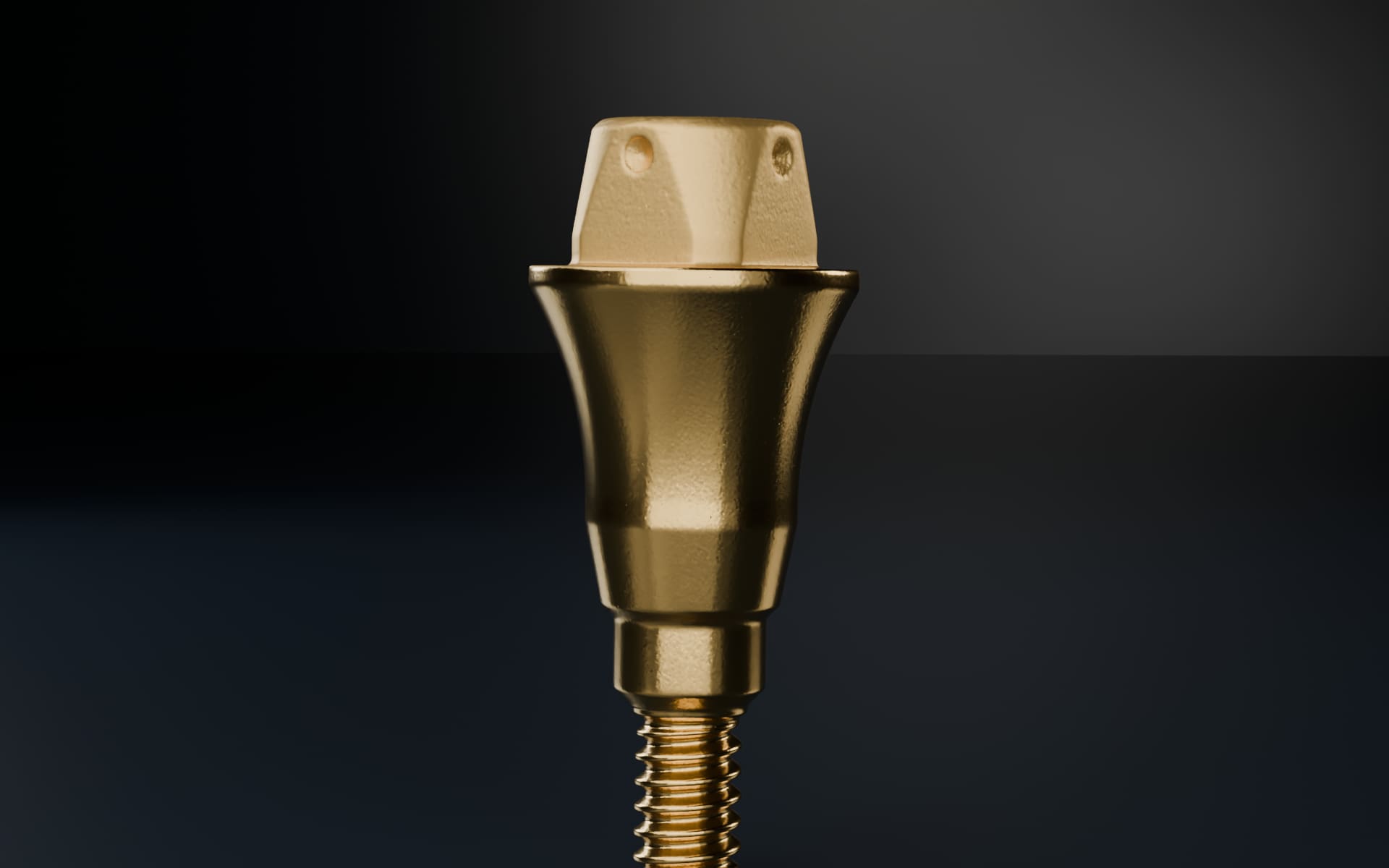

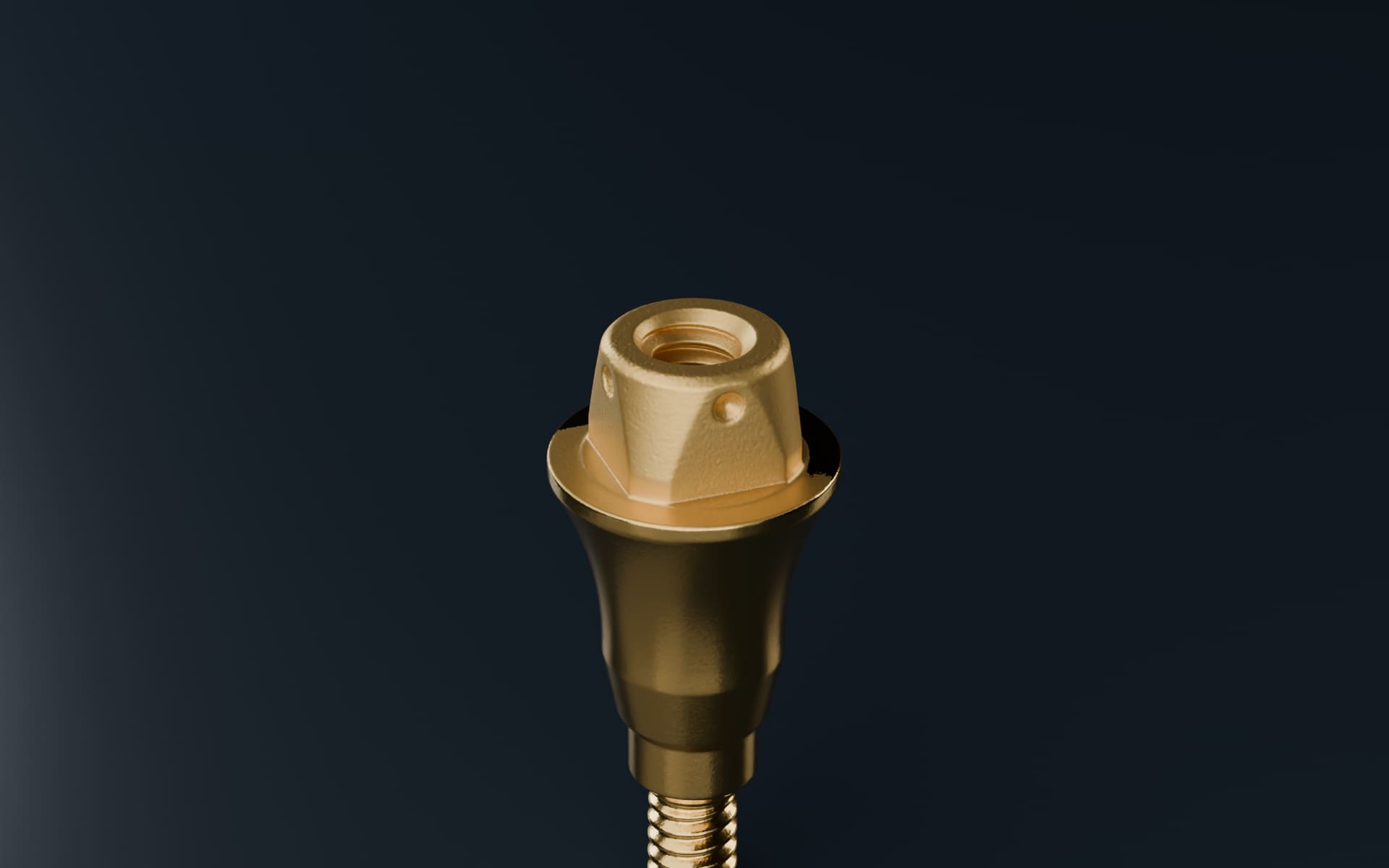

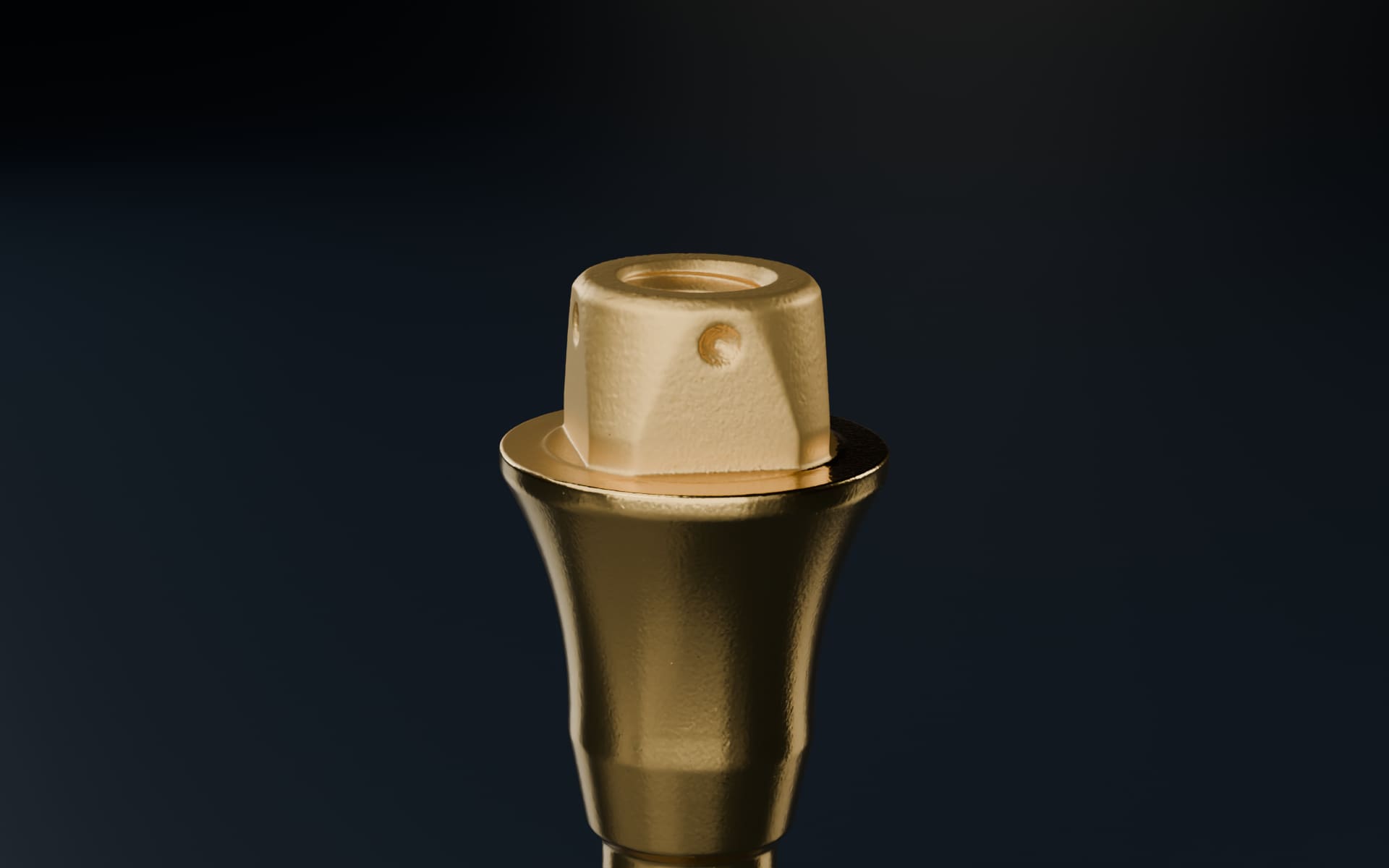

4 scan mark surfaces allow direct scanning in surgical and/or prosthetic phase, eliminating the need for scan posts. 1 of 6 Up to 3x more surface area than an external hex implant, reducing stress on prosthesis retention screw. 2 of 6 Quad-surface geometry with 10° bevel ensures superior fit of prosthesis, eliminating the marginal micro-gap and prosthesis mobility. 3 of 6 Concave design shoulder with 15° emergence angle provides favorable soft and hard tissue response. 4 of 6 One-piece design eliminates risk of bacteria infiltration to implant platform by removing the chimney. 5 of 6 Variety of cuff heights for adaptability to implant depth placement and supra-crestal soft tissue height, with options of 1.5mm, 2.5mm, and 3.5mm. 6 of 6

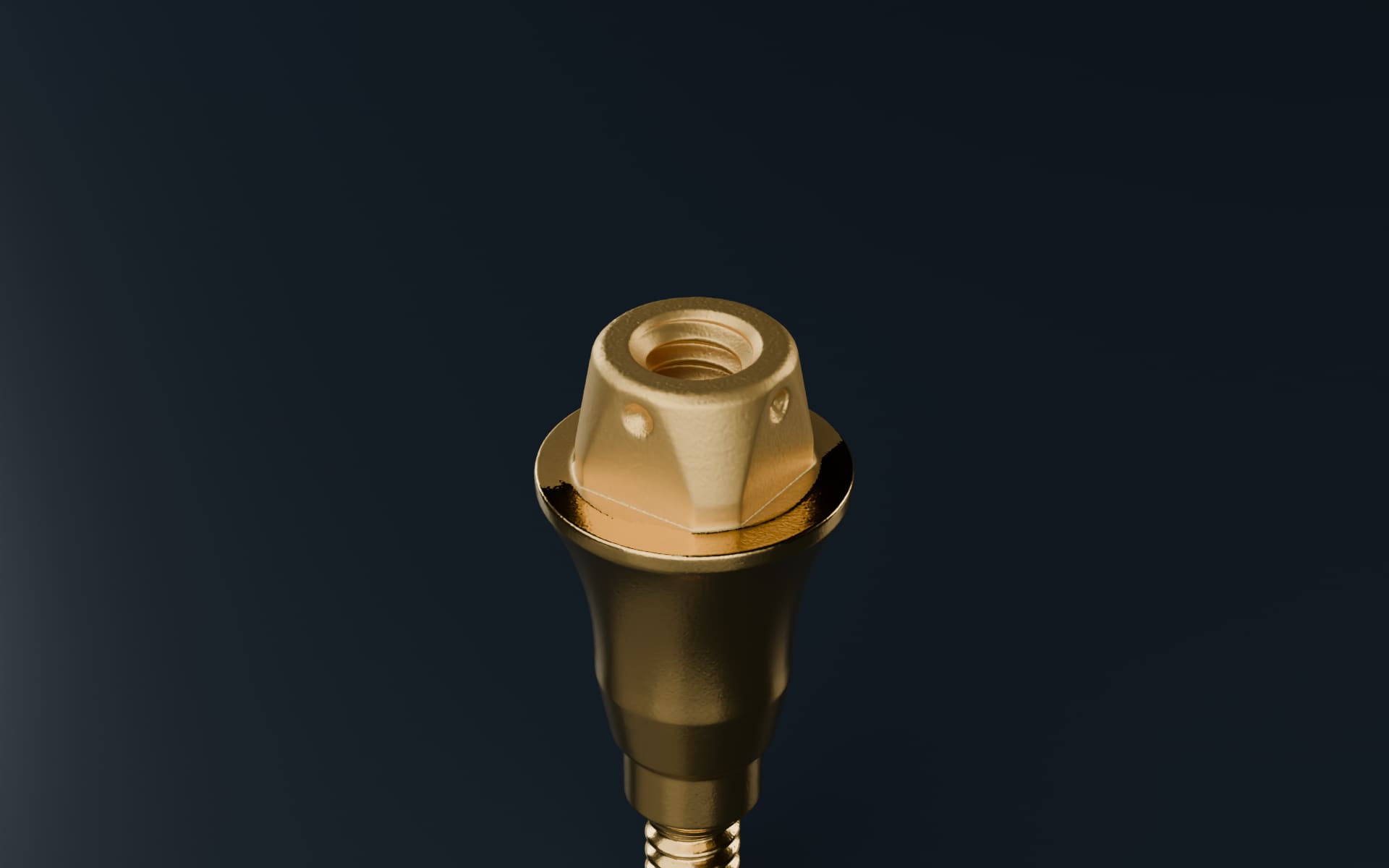

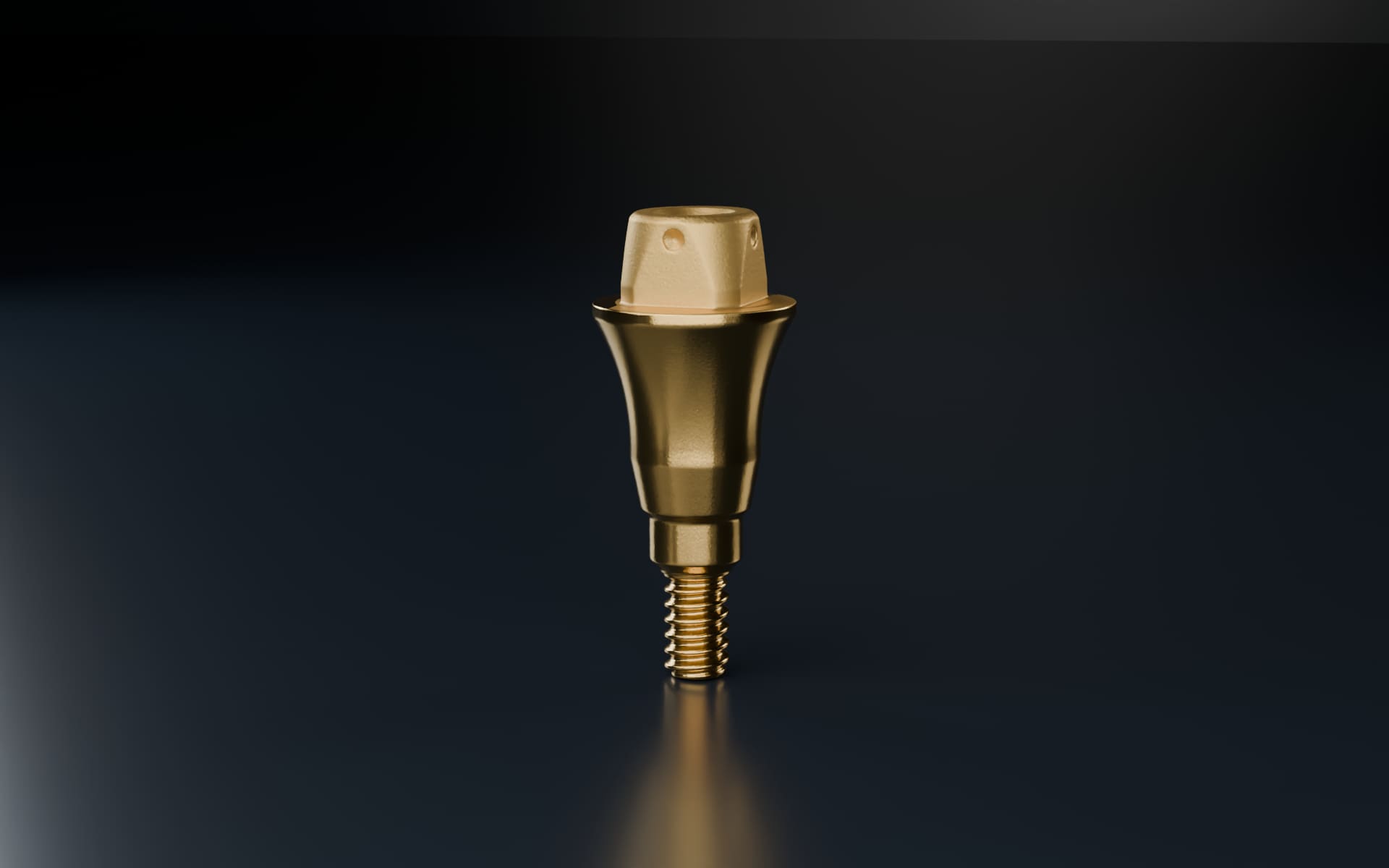

the i-base

One abutment for all stages of treatment

Abutment level prosthetic protocol
  • No unnecessary transgingival component disconnections that can lead to tissue recession
  • Easy evaluation of prosthetic component fit during all restorative stages; simplifying the restorative process of conical connection implants.
  • Allows up to 30˚ angulation correction (short AR/R-sleeve)

AR / R Sleeve

Multi purpose sleeves

AR – Sleeve | Anti – Rotational
  • Suitable for single unit prosthesis
  • Quad-surface conical geometry
  • Allows precise and anti-rotational fit onto the i-base
R – Sleeve | Rotational
  • Suitable for multiple unit prosthesis
  • Circular geometry
  • Provides ease for multiple unit prosthesis path of insertion

AR / R Sleeve

Multi purpose sleeves

AR – Sleeve | Anti – Rotational
  • Suitable for single unit prosthesis
  • Quad-surface conical geometry
  • Allows precise and anti-rotational fit onto the i-base
R – Sleeve | Rotational
  • Suitable for multiple unit prosthesis
  • Circular geometry
  • Provides ease for multiple unit prosthesis path of insertion

iCervico Healers

iCervico Healers are designed to optimize the healing process. They come in various sizes and shapes, including small, medium, and large, with options for centered and offset configurations to suit different teeth types like anteriors, premolars, lower molars, and upper molars. Made from biocompatible resin, these healers are prefabricated and low-cost, saving valuable time in clinical procedures. Despite their prefab nature, they do not compromise on customization flexibility. They can be freely rotated and customized, allowing for ideal orientation on the i-base without affecting the digital protocol. Prefabricated healers are used directly on the i-base, ensuring a precise fit and enhancing both soft and hard tissue responses. This flexibility paves the way for successful final prosthesis installation.

Retention screw

Innovative retaining screw made of Ti6Al4Valloy with a diameter of M1.6 (similar diameter with TI-BASE retaining screw) allowing a screw torque of 30 N/cm.
Corrects up to 30 degrees of angle in a 360 degree direction

Lab analog

• One analog for all i-base options
• Compatible with both analogic and digital protocols
• Innovative design for accurate positioning into the 3D printed models

Impression post

• Suitable for both single & multiple unit cases
• Suitable for both open and closed tray impression techniques
• Scannable version available
